Cantilever type cable tray production line may produce the cable tray,the different sizes  through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.

Equipment capacity
1.  Cantilever type cable tray production line can produce many sizes of cable tray according to producing requirement.(material steel width 100mm≤§≤860mm)
2.  Line speed:2.5-5m/min
3.  Continuous forming speed:10-15m/min
4.  Steel thickness:1-2.5mm
5.  Material : mild steel galvanized steel coil
6.  Cantilever type cable tray production line divide into two operations: automatic &handle. It can work with  linkage  and     subsection.

Equipment structure

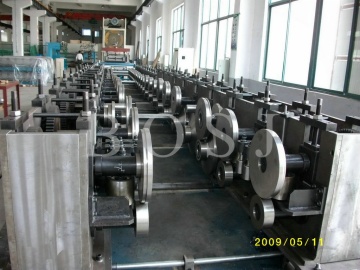

Cantilever type cable tray production line consists of decoiler, ML-900 flatting device, servo feeding, JF21-200B punching, punching dies, guider, forming machine, cut-to-length device, collection table and electrical control.etc
